12.1-inch color LCD display, touch operation, 12-lead synchronous acquisition, same-screen display,Support the output of protocol files:PDF、GDT、FDA-XML、DICOM、SCP、HL7, smooth connection with HIS system.

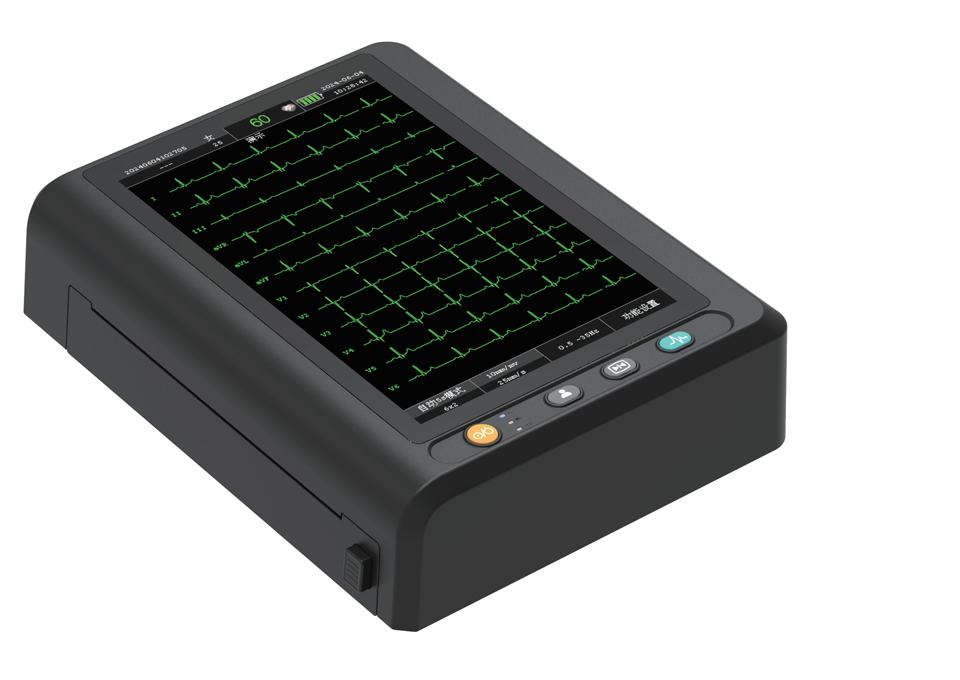

Feature

● 12.1-inch color LCD display, touch operation, 12-lead synchronous acquisition, same-screen display
● Support the output of protocol files:PDF、GDT、FDA-XML、DICOM、SCP、HL7, smooth connection with HIS system.
● Advanced anti-baseline drift technology, stable baseline and fast wave output
● High sampling rate, support pacing sampling
● Large-capacity lithium battery, long battery life and continuous working time
● Eye-catching function keys for quick operation, full digital keyboard design

Feature

Standard Configuration

● HOSTS: 1 PCS
● ECG LEAD WIRE: 1 PCS
● POWER CABLE: 1 PCS
● USER MANNUAL(CD): 1 PCS
● THERMAL PRINTING PAPER: 1 PCS
● LIMP CLIP: 4 PCS
● CHEST SUCTION BALL: 6 PCS

Standard Configuration

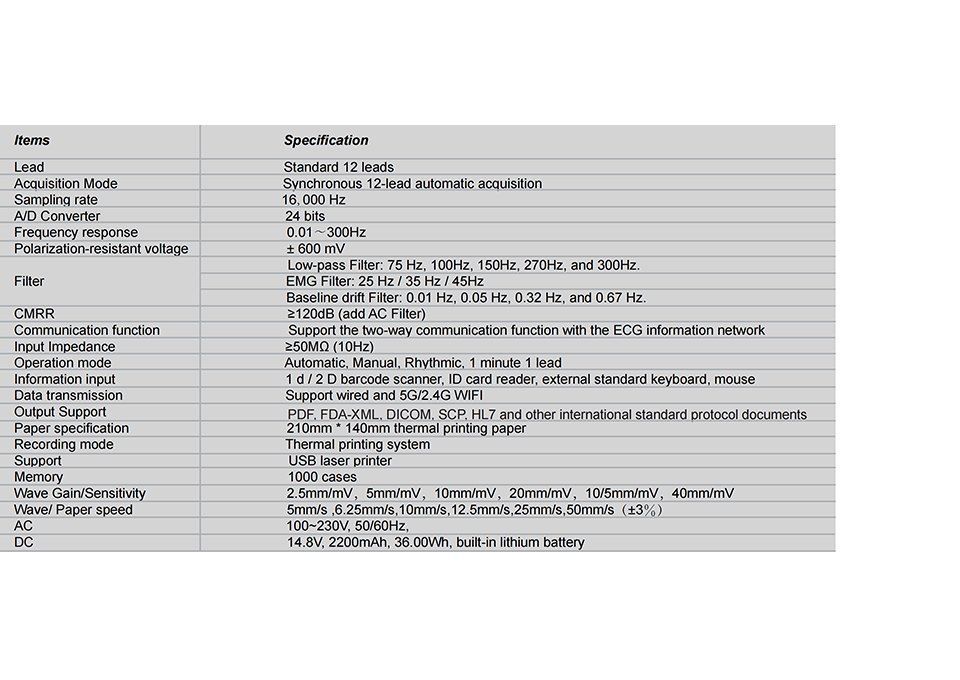

Technique Specification

Technique Specification

Packing

● Single package size: 46*21*36 cm
● Single gross weight: 5.5kG
● 2 unit per carton, package size:48*43*39cm, total gross weight 12KG

Packing
