7 inch high resolution color touch screen.Full alphanumeric keyboard with shortcut keys, efficient in operation.

Feature

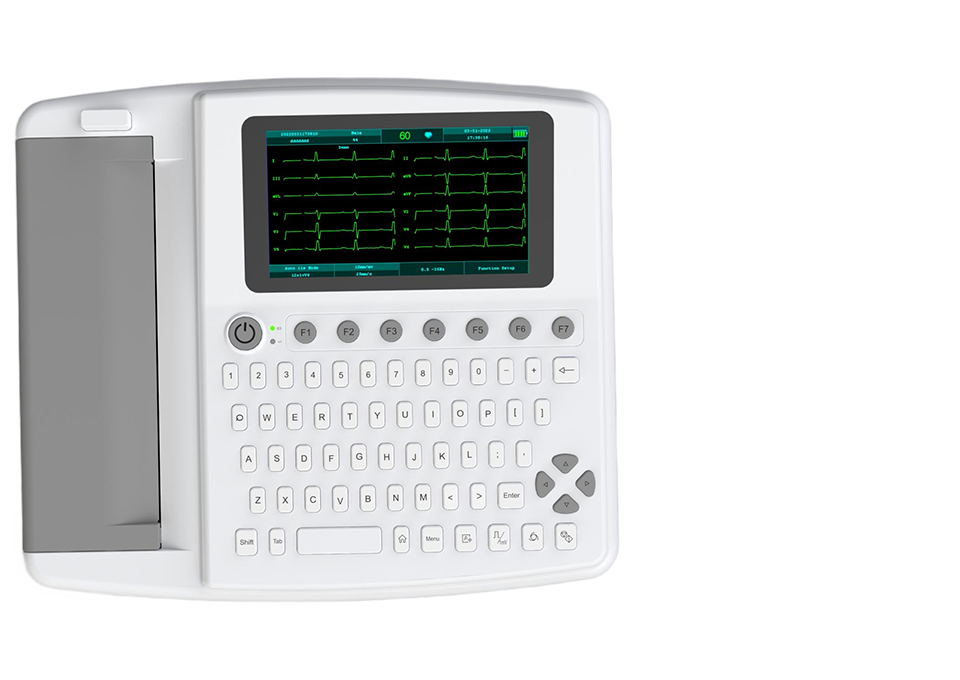

● 7 inch high resolution color touch screen.
● Full alphanumeric keyboard with shortcut keys, efficient in operation.
● Simultaneous 12 leads ECG acquisition and display.
● Automatic ECG measurements and interpretation.
● Internal storage up to 1000 cases, convenient for case review and statistic.
● Built-in rechargeable lithium high capacity battery.
● ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software.

Feature

Standard Configuration

● Main machine: 1 PC
● Patient cable: 1 PC
● Limb electrode: 1set (4pcs)
● Chest electrode: 1set( 6pcs)
● Power cable: 1 PC
● 210mm*30M recording paper: 1 PC
● Paper axis: 1 PC
● Power cord: 1 PC

Standard Configuration

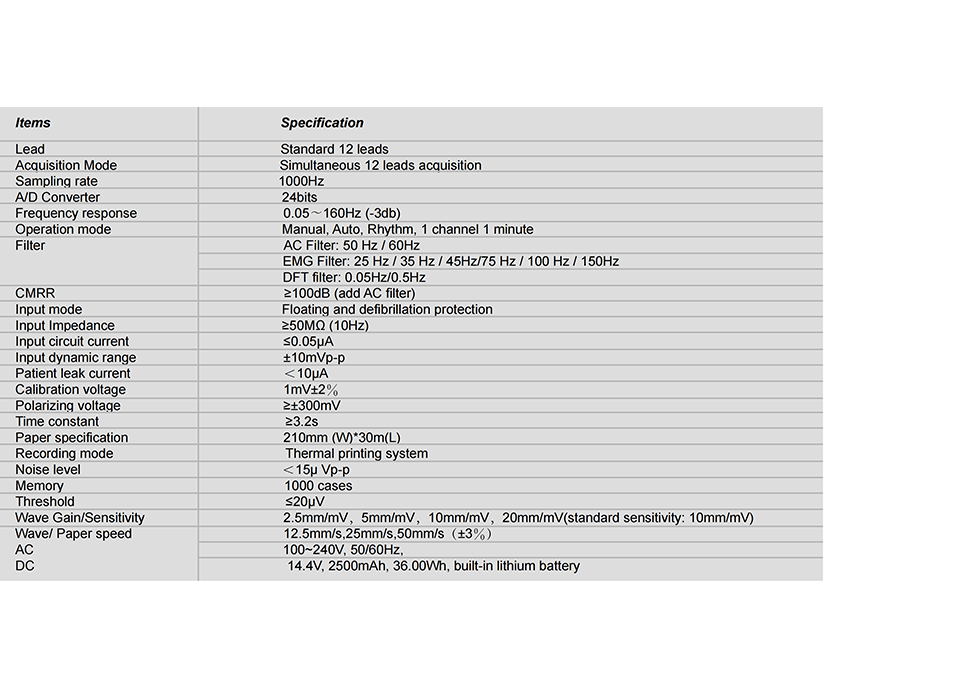

Technique Specification

Technique Specification

Packing

● Single package size: 43*20*42 cm
● Single gross weight: 5.5KG
● 4 unit per carton, package size: 82.5*44.5*45cm, total gross weight 24 KG

Packing
